Description of Hyperbaric Oxygen Therapy

Hyperbaric Oxygen Therapy (HBOT) is the administration of pure oxygen at pressures greater than normal atmospheric pressure to a patient inside a hyperbaric chamber for therapeutic reasons.

This treatment is performed in pressure chambers of various sizes, ranging from monoplace chambers for one patient only, to multiplace or multi-compartment treatment chambers in which several patients can sit and where hospital beds or even an entire intensive care setting can be installed and where health workers can attend to the patients.

This therapy has been available for several decades and is used for many indications. It is typically administered at 1 to 3 atm. for 90 to 120 minutes. HBOT appears to be quite safe and the occasional adverse effects are mainly mild and reversible although they could, potentially, be severe and life threatening. State of the art installation and maintenance and adequate staffing is therefore of paramount importance.

Clinical Effectivenes

HBOT has been used for many medical conditions. HBOT has become accepted standard therapy in a few life threatening conditions i.e. decompression illness and gas embolism; mainly based on historical empirical evidence.

indications accepted by either the European or the North American Hyperbaric Medical Societies; the European Committee for Hyperbaric Medicine (ECHM, www.echm.org) and the Undersea and Hyperbaric Society’ (UHMS, www.uhms.org)

We manufacture various type of HBOT Chambers.

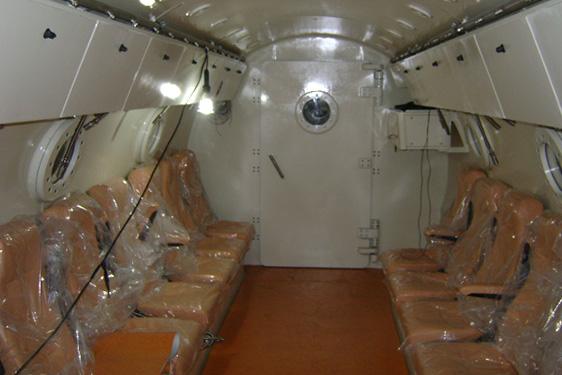

The Omega is a classic shaped chamber and we also have a Rectangular type, both provide more space and less claustrophobic feeling for the patients during the therapy.

- Air or Gas Embolism
- Carbon Monoxide Poisoning
- Clostridial Myositis and Myonecrosis (Gas Gangrene)
- Crush Injury, Compatement Syndrome- Decompression Sickness
- Arterial Insufficiencies
- Severe Anemia
- Intracranial Abscess
- Necrotizing Soft Tissue Infections
- Osteomyelitis (Refractory)
- Delayed Radiation Injury (Soft Tissue and Bony Necrosis)
- Compromised Grafts and Flaps
- Acute Thermal Burn Injury
- Idiopathic Sudden Sensorineural Hearing Loss
- Enhancement of Healing in Selected Problem Wounds
- Post-anoxic encephalopathy
- Ophtalmological Disorders
- Neuroblastoma Stage IV
- Pneumatosis Cystoides Intestinalis

Medical Grade Compression Gas System
Communication System
Video Monitoring System
Video Recording
Viewports
Medical Lock
02 & CO2 Gas Analyzers
02 & CO2 Monitoring
Air Conditioner
Oxygen Mask & Hood
Hyperbaric Lights
CO2 Scrubber
Temperature & Humidity Sensors
Hyperbaric Fire Extinguishers
Oxygen Storage Cylinders
High Pressure Air Storage Cylinders
High Pressure Air Compressor
Spare Penetrators
Pressure Gauge
Caisson Gauge
Benching/Seating/Stretcher

Working Pressure: 3 ATA - 6.5 ATA ( 2 bar - 5.5 bar)
Main Chamber Human Capacity: 4 - 16 patients
Entry Chamber Patient Cap.: 2-4 patients
Dimensions (Sigma): 7500 x 2300mm
Dimensions (Rectangular): 6700 x 2300mm
Material: PressureVessel Steel
Number of Doors: 3
Rectangular Doors: 800x1800mm
Viewports: Ø300mm
Standards: EN 14931, ASME PVHO-1, 2014/68/EU, 97/23/EC, ASME SEC VII Division.1, EN 93/42 EEC

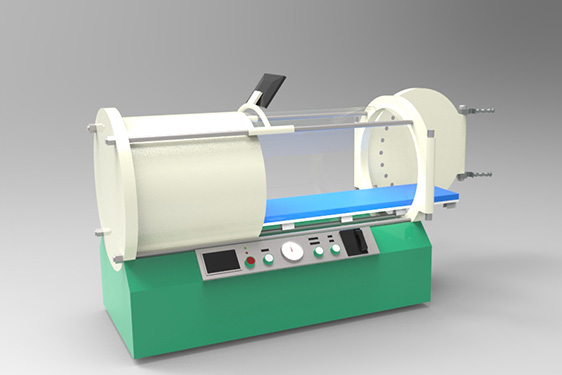

Working Pressure: 2.0 ATA - 4 ATA ( 1 bar - 3 bar)
Semi Acrylic, Full Acrylic
Chamber Capacity: 1 patient
Dimensions: Ø900 - 1000 x (L) 2400mm
Material: Steel and Acrylic
Standards: EN 14931, ASME PVHO-1, 2014/68/EU, 97/23/EC, ASME SEC VII Division.1, EN 93/42 EEC
